Product Summary

1.Basic series

YL =  Round electrical connector(meet GJB598A-1996 series I)

2.Type between pin and cable

H = conduction soldering

B = PCB soldering

3.Type of plug and socket ("receptacle" in Kaida)

16/26 =  common plug/shielded

14/24 =  socket mounting in front of nut/ shielded

10/20 =  square flange mounting socket/ shielded

18/28=   nut mounting through wall socket/ shielded

19/29 =  square flange mounting through wall socket/ shielded

30/40 =  square flange mounting socket with thread tail/ shielded

34/44 =  nut mounting socket with thread tail/shielded

15/25 =  socket mounting at the back of nut/ shielded

17/27 =  floating socket/ shielded

4.Shell surface treatment("Finish"in Kaida)

R  =  black anodized(Non-conductive shell)

W =  sand green anodized(Non-conductive shell)

Wb = bright green anodized(Non-conductive shell)

Wc = dark green anodized(Non-conductive shell)

N =  electroless dark nickel plating(conductive shell)

Nb = electroless bright nickel plating(conductive shell)

B =  cadmium plating (conductive shell)

H =  black Chrome plating(conductive shell)

S =  stainless steel passivated(conductive shell)

Y =  grey anodized(Non-conductive shell)

5.Shell size =  the outer diameter number of the mounting guide pin socket

6.Number of contact hole

7.Type of contact

J = Pin

K = Socket

S = Thru bulkhead contact,socket outside of the panel,pin inside of the panel

S1=Thru bulkhead contact,pin outside of the panel,socket inside of the panel

8.Number of special contact A, B, C…

9.Tail accessory code

01/21 = straight hermetic cable / shielded

02/22/32 =straight cable clamp / shileded / hermetic shielded

03/23 = hermetic back with rubber / shielded

04/24 = curved hermetic cable avoid turn / shielded

05/25 = curved cable clamp / shielded

… other types

10.Insulated mounting plate position = W, X, Y, Z

11.Sign of special shell 1, 2, 3,…

12.cable diameter

Note: when the shell number is 08 and 10,  the tail accessory code of the straight hermetic cable is "11"

Features

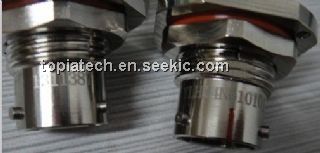

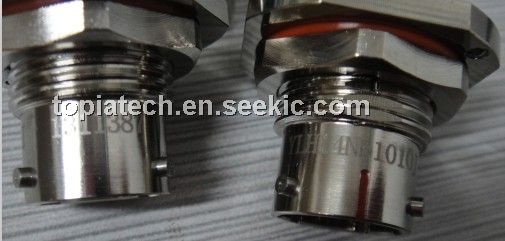

socket mounting in front of nut,electroless bright nickel plating(conductive shell),10 pins
