Product Summary

1.Basic series

YL =  Round electrical connector(meet GJB598A-1996 series I)

2.Type between pin and cable

H = conduction soldering

B = PCB soldering

3.Type of plug and socket ("receptacle" in Kaida)

16/26 =  common plug/shielded

14/24 =  socket mounting in front of nut/ shielded

10/20 =  square flange mounting socket/ shielded

18/28=   nut mounting through wall socket/ shielded

19/29 =  square flange mounting through wall socket/ shielded

30/40 =  square flange mounting socket with thread tail/ shielded

34/44 =  nut mounting socket with thread tail/shielded

15/25 =  socket mounting at the back of nut/ shielded

17/27 =  floating socket/ shielded

4.Shell surface treatment("Finish"in Kaida)

R  =  black anodized(Non-conductive shell)

W =  sand green anodized(Non-conductive shell)

Wb = bright green anodized(Non-conductive shell)

Wc = dark green anodized(Non-conductive shell)

N =  electroless dark nickel plating(conductive shell)

Nb = electroless bright nickel plating(conductive shell)

B =  cadmium plating (conductive shell)

H =  black Chrome plating(conductive shell)

S =  stainless steel passivated(conductive shell)

Y =  grey anodized(Non-conductive shell)

5.Shell size =  the outer diameter number of the mounting guide pin socket

6.Number of contact hole

7.Type of contact

J = Pin

K = Socket

S = Thru bulkhead contact,socket outside of the panel,pin inside of the panel

S1=Thru bulkhead contact,pin outside of the panel,socket inside of the panel

8.Number of special contact A, B, C…

9.Tail accessory code

01/21 = straight hermetic cable / shielded

02/22/32 =straight cable clamp / shileded / hermetic shielded

03/23 = hermetic back with rubber / shielded

04/24 = curved hermetic cable avoid turn / shielded

05/25 = curved cable clamp / shielded

… other types

10.Insulated mounting plate position = W, X, Y, Z

11.Sign of special shell 1, 2, 3,…

12.cable diameter

Note: when the shell number is 08 and 10,  the tail accessory code of the straight hermetic cable is "11"

Parametrics

Performance specification

Operating temperature range: -55 oC ~ +125 oC

Relative humidity: 40 + 2 oC, 90% ~ 95%

Operating atmospheric pressure: 4.39 kPa ~ 101.33 kPa

Vibration: 10 Hz ~ 2000 Hz,196 m/s2

Durability: ≥ 500 cycles (2000 cycles for those under 7 pins)

Features

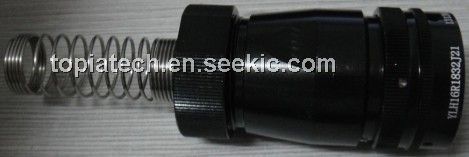

common plug,black anodized(Non-conductive shell),32 pins,tail is shielded straight hermetic cable,cable diameter=15
