Product Summary

The AN17850A is a kind of Silicon Monolithic Bipolar IC used in Audio application.

Parametrics

AN17850A absolute maximum ratings: (1)Storage Temperature, Tstg: -55 to +150℃; (2)Operating Ambient Temperature, Topr: -25 to +75℃; (3)Operating Constant Acceleration, Gopr: 9,810m / s 2; (4)Operating Shock, Sopr: 4,900m / s 2 ; (5)Power Supply Voltage, Vcc: 33V; (6)Power Supply Current, Icc: 8.0A; (7)Power Dissipation, PD: 37.5W.

Features

AN17850A features: (1)Structure: Silicon Monolithic Bipolar IC; (2)Appearance: SIL-12 Pins Plastic Package (FP-12S Power Type With Fin); (3)Application: Audio; (4)Function: 70W (6W) x 1ch BTL Power Amplifier; Built-in Standby and Muting Features; Incorporating Various Protection Circuits.

Diagrams

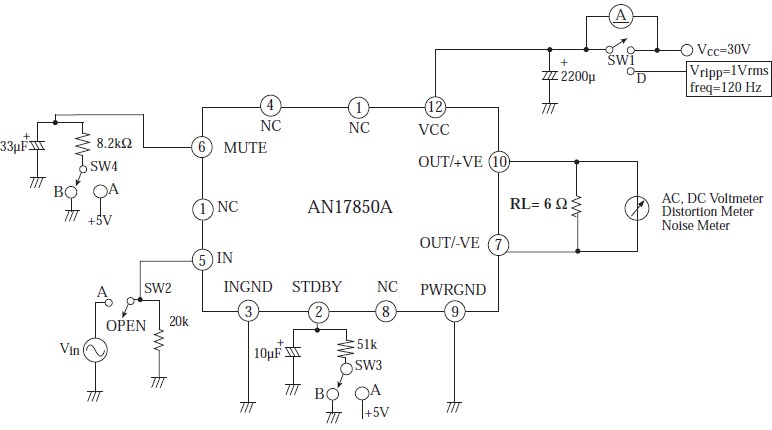

AN17850A circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AN17850A
AN17850A

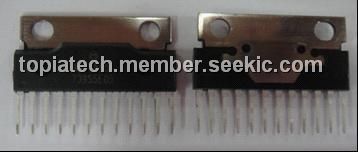

IC AUDIO AMP 70W 1CH SIL-12

Data Sheet

0-1: $2.51
1-25: $2.01
25-100: $1.84
100-250: $1.66
250-500: $1.49
500-1000: $1.29
