Product Summary

The BNX012-01 is a kind of EMI Filter.

Parametrics

BNX012-01 absolute maximum ratings: (1)Maximum DC Current: 15 Amps; (2)Maximum DC Resistance: 500 MOhms; (3)Voltage Rating: 50 Volts; (4)Withstand Voltage: 125 Volts; (5)Insertion Loss: 1MHz to 1GHz:40dB min. (20 to 25 degrees C line impedance=50 ohm); (6)Operating Temperature Range: - 40℃ to + 125℃.

Diagrams

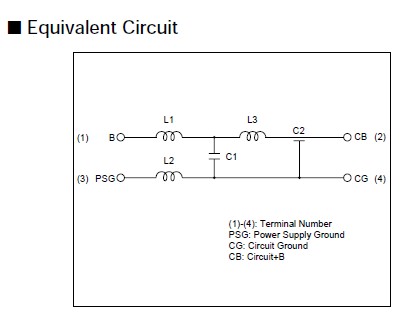

BNX012-01 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BNX012-01
BNX012-01
Murata
EMI Filters 50V 15A EMI BLK FILT
Data Sheet
0-1: $2.53
1-50: $1.97
50-100: $1.71
100-500: $1.65
