Product Summary

The EMIF02-MIC03 is a highly integrated device designed to suppress EMI/RFI noise in all systems subjected to electromagnetic interferences. The EMIF02 Flip-Chip packaging means the package size is equal to the die size. The EMIF02-MIC03 includes an ESD protection circuitry which prevents damage to the application when subjected to ESD surges up 15 kV.

Parametrics

EMIF02-MIC03 absolute maximum ratings: (1)Tj, Maximum junction temperature: 125 ℃; (2)Top, Operating temperature range: - 40 to + 85 ℃; (3)Tstg, Storage temperature range: - 55 to 150 ℃.

Features

EMIF02-MIC03 features: (1)EMI symmetrical (I/O) low-pass filter; (2)High efficiency in EMI filtering; (3)Very low PCB space consuming: 1.07 mm x 1.47 mm; (4)Very thin package: 0.65 mm; (5)High efficiency in ESD suppression; (6)High reliability offered by monolithic integration; (7)High reducing of parasitic elements through integration & wafer level packaging.

Diagrams

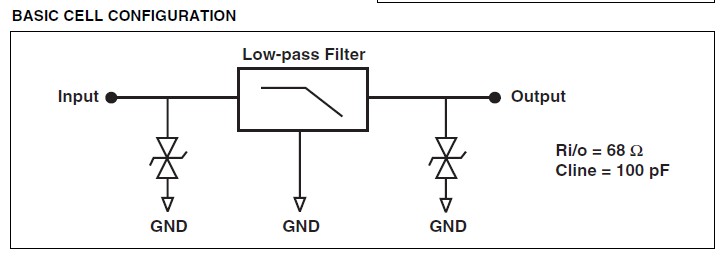

EMIF02-MIC03 circuit diagram
