Product Summary

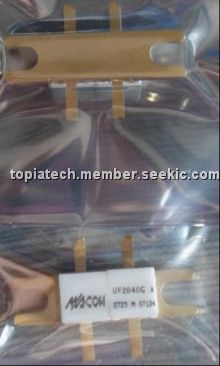

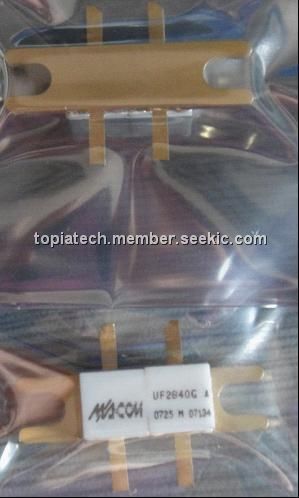

The UF2840G is a 40W, 100-500 MHz, 28V, RF Power MOSFET Transistor.

Parametrics

UF2840G absolute maximum ratings: (1)Drain-Source Voltage, VDS: 65V; (2)Gate-Source Voltage, VGS: 20V; (3)Drain-Source Current, IDS: 4A; (4)Power Dissipation, PD: 116W; (5)Junction Temperature, Tj: 200℃; (6)Storage Temperature, Tstg: -55 to 150℃; (7)Thermal Resistance, θJC: 1.52℃/W.

Features

UF2840G features: (1)N-channel enhancement mode device; (2)DMOS structure; (3)Lower capacitances for broadband operation; (4)High saturated output power; (5)Lower noise figure than competitive devices.

Diagrams

UF2840G block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
UF2840G
UF2840G

M/A-COM Technology Solutions

Transistors RF MOSFET Power 100-500MHz 40Watts 28Volt Gain 10dB

Data Sheet

0-1: $104.39
1-10: $93.95
10-25: $88.73
25-50: $86.12
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
UF2805B
UF2805B

Other


Data Sheet

Negotiable
UF28100V
UF28100V

M/A-COM Technology Solutions

Transistors RF MOSFET Power 100-500MHz 100Watts 28Volt 10dB

Data Sheet

0-1: $143.92
1-10: $133.17
10-25: $126.35
25-50: $123.37
UF28150J
UF28150J

M/A-COM Technology Solutions

Transistors RF MOSFET Power 100-500MHz 150Watts 28Volt Gain 8dB

Data Sheet

0-1: $202.66
1-10: $182.39
10-25: $172.26
UF28156
UF28156

Other


Data Sheet

Negotiable
UF281OOH
UF281OOH

Other


Data Sheet

Negotiable
UF281OOM
UF281OOM

Other


Data Sheet

Negotiable
