Product Summary

The XC2C128-7TQ144C is a CPLD. It delivers the high speed and ease of use associated with the XC9500/XL/XV CPLD family with the extremely low power versatility of the XPLA3 family in a single CPLD. This means that the XC2C128-7TQ144C can be used for high-speed data communications/computing systems and leading edge portable products, with the added benefit of In System Programming. Low power consumption and high-speed operation are combined into a single family that is easy to use and cost effective. Clocking techniques and other power saving features extend the users’ power budget.

Parametrics

XC2C128-7TQ144C absolute maximum ratings: (1)VCC, Supply voltage relative to GND: –0.5 to 2.0 V; (2)VI, Input voltage relative to GND: –0.5 to 4.0 V; (3)TJ, Maximum junction temperature: –40 to 150℃; (4)TSTR, Storage temperature: –65 to 150℃.

Features

XC2C128-7TQ144C features: (1)Fastest in system programming; (2)On-The-Fly Reconfiguration (OTF); (3)IEEE1149.1 JTAG Boundary Scan Test; (4)Optional Schmitt trigger input (per pin); (5)Multiple I/O banks on all devices; (6)Unsurpassed low power management; (7)DataGATE external signal control; (8)Global signal options with macrocell control; (9)Abundant product term clocks, output enables and set/resets; (10)Efficient control term clocks, output enables and set/resets for each macrocell and shared across function blocks.

Diagrams

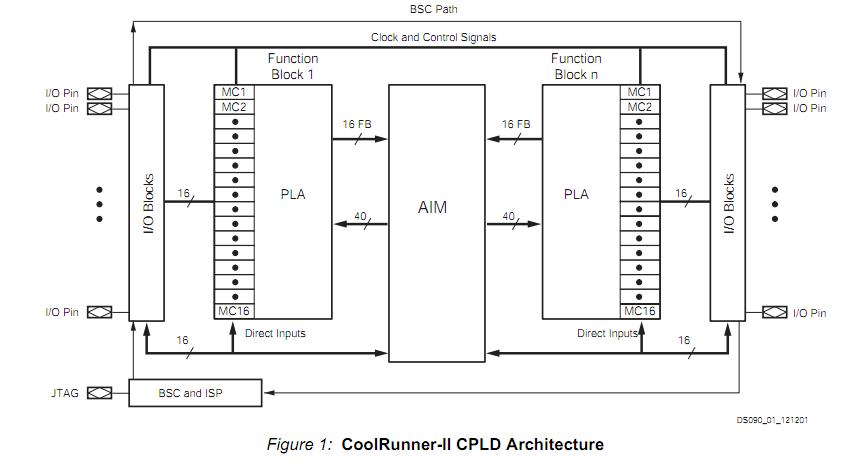

XC2C128-7TQ144C circuit diagram

XC2C128
XC2C128

Other


Data Sheet

Negotiable
