Product Summary

The BT-U000-HS is a Module with Connector.

Parametrics

BT-U000-HS absoltue maximum ratings: (1)Description: Bias Tee; (2)Operating Frequency: 0.5 – 18 GHz; (3)Insertion Loss: 0.9 dB Max; (4)VSWR: 1.55:1 Max ; (5)Isolation DC to RF: 25dB Min; (6)Bias Frequency Bandwidth DC-50 MHz; (7)RF Power: 10W Max; (8)Bias Voltage: 50 Volts Max; (9)Bias Current: 220 mA Max; (10)Bias DC Resistance: 1.0 Ohms; (11)RF Connector: SMA (female); (12)RF+DC Connector: SMA (female); (13)Bias Connector: Solder Pin; (14)Impedance: 50 Ohms Nominal; (15)Quality: Best-Commercial-Grade.

Features

BT-U000-HS features: (1)Frequency0.5 - 18 GHz; (2)Voltage50 V; (3)Current220 mA; (4)Insertion Loss0.9 dB; (5)Isolation25 dB; (6)Avg Power10 W; (7)Package TypeModule with Connector; (8)ConnectorSMA - Female.

Diagrams

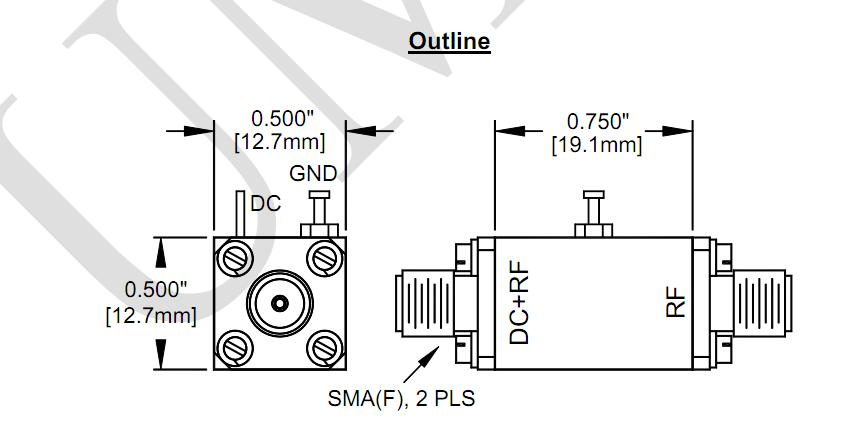

BT-U000-HS dimenisions
