Product Summary

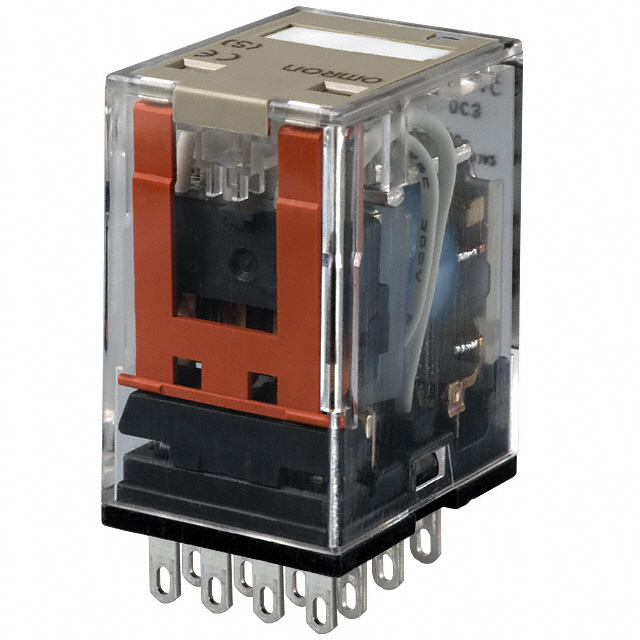

The MY4 DC12V is a general-purpose relay.

Parametrics

MY4 DC12V absolute maximum ratings: (1)Rated load, Resistive load(cosφ = 1): 3A, 250VAC; 3A, 30VDC; Inductive load (cosφ = 0.4, L/R = 7 ms): 0.8A, 250VAC; 1.5A, 30VDC; (2)Carry current: 5 A; (3)Max. switching voltage, 250VAC, 125VDC; (4)Max. switching current: 5A; (5)Max. switching capacity, Resistive load(cosφ = 1): 1,250VA, 150W; Inductive load (cosφ = 0.4, L/R = 7 ms):500VA, 150W; (6)Min.permissible load: 1VDC, 1mA.

Features

MY4 DC12V features: (1)Models with lockable test buttons now available; (2)Multiple features available, including operation indicators (mechanical and LED indicators), lockable test button, built-in diode and CR (surge suppression), bifurcated contacts, etc; (3)Environment-friendly cadmium-free contacts; (4)Wide range of Sockets (PY, PYF Series) and optional parts; (5)Max. Switching Current: 2-pole: 10 A, 4-pole: 5 A; (6)Provided with nameplate; (7)RoHS Complaint.

Diagrams

MY4 DC12V block diagram

MY4 AC110/120 (S)
MY4 AC110/120 (S)

RELAY GEN PURPOSE 4PDT 3A 120V
Data Sheet
0-1: $5.58
1-25: $5.02
25-50: $4.46
50-100: $4.02
100-250: $3.79
250-500: $3.35
500-1000: $3.01
MY4 AC12 (S)
MY4 AC12 (S)
Omron Industrial
General Purpose / Industrial Relays 4PDT 12VAC
Data Sheet
0-1: $3.07
1-25: $2.88
25-50: $2.75
50-100: $2.63
MY4 AC24 (S)
MY4 AC24 (S)

RELAY GEN PURPOSE 4PDT 3A 24V
Data Sheet
0-1: $5.45
1-25: $4.90
25-50: $4.36
50-100: $3.92
100-250: $3.70
250-500: $3.27
500-1000: $2.94
MY4 AC48/50 (S)
MY4 AC48/50 (S)
Omron Industrial
General Purpose / Industrial Relays 3A 48/50 VAC 4PDT
Data Sheet
0-1: $3.91
1-25: $3.71
25-50: $3.31
50-100: $3.21
MY4 AC6 (S)
MY4 AC6 (S)
Omron Industrial
General Purpose / Industrial Relays Std 4PDT w/o LED AC 6 Coil Voltage
Data Sheet
0-1: $5.50
1-25: $5.26
25-50: $5.00
50-100: $4.54
MY4 DC100/110 (S)
MY4 DC100/110 (S)
Omron Industrial
General Purpose / Industrial Relays 3ARelay 110VDC 4PDT Plug-InSLDTerm
Data Sheet
0-1: $3.98
1-25: $3.72
25-50: $3.55
50-100: $3.40
