Product Summary
The DS4E-ML2-DC5V is a DS relay with breakthrough height of 9.8 mm. Its gold-clad twin contacts ensure high reliability. The DS4E-ML2-DC5V can be used with automatic solder and automatic wash systems. Besides telecommunications, measuring devices, office equipment, computers and related equipment, the DS4E-ML2-DC5V also recommended for a broad range of applications including business devices, audio systems, and industrial equipment.
Parametrics
DS4E-ML2-DC5V electrical characteristics: (1)Insulation resistance (Initial): Min. 100MΩ (at 500V DC)Measurement at same location as Initial breakdown voltage section; (2)Breakdown voltage(Initial), Between open contacts: 1,000 Vrms for 1min(500 Vrms for 1min: 1 Form C high sensitivity type) (Detection current: 10mA.); (3)Breakdown voltage(Initial),Between contact and coil, 1,500 Vrms for 1min.(1,000 Vrms for 1min: 1 Form C high sensitivity type) (Detection current: 10mA.); (4)Temperature rise: Max. 65℃(By resistive method, nominal coil voltage applied to the coil, contact carrying current: 2A.); (5)Operate time [Set time] (at 20℃ 68°F): Max. 10 ms [10 ms] (Nominal coil voltage applied to the coil, excluding contact bounce time.); (6)Release time [Reset time] (at 20℃ 68°F): Max. 5 ms [10 ms] (Nominal coil voltage applied to the coil, excluding contact bounce time.)(without diode).
Features
DS4E-ML2-DC5V features: (1)Breakthrough height of 9.8 mm; (2)Suitable for use in difficult environments; (3)Can be used with automatic solder and automatic wash systems; (4)Gold-clad twin contacts ensure high reliability; (5)Polarized magnetic circuits realize resistance to shock and vibration; (6)DIL terminal array enables use of IC sockets; (7)Widening scope of application with multicontact latching.

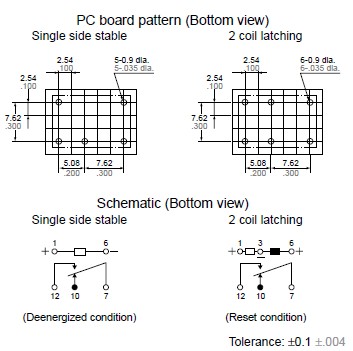

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DS4E-ML2-DC5V |
Panasonic Electric Works |
Low Signal Relays - PCB 2A 5VDC 4PDT 2 COIL LATCHING PCB |
Data Sheet |
