Product Summary
The 88PG8227 is a Field Programmable DSP Switcher. The 88PG8227 integrates the dual synchronous Step-Down (Buck) switching regulators housed in a 3 X 4mm QFN-20 package. Internally self-compensated, the 88PG8227 requires no external compensation and works with low-ESR output capacitors to simplify the design, minimize the board space, and reduce the amount of external components. The switching frequency for the 88PG8227 is 1MHz, allowing the use of low profile surface mount inductors and low value capacitors. Each step-down regulator includes programmable output voltage to allow the user to easily set the output voltage with external resistors, logic control, or serial data interface. The output voltage range is 0.72V to 3.63V.
Parametrics
88PG8227 absoolute maximum ratings: (1)Signal Input Voltage, SVIN: -0.3 to 6.0 V; (2)Power Input Voltage, PVIN1, PVIN2: -0.3 to 6.0 V; (3)Switch Voltage, VSW1, VSW2: -0.6 to (SVIN +0.3) V; (4)Switching Regulator Feedback Voltage, VSFB1, VSFB2: -0.6 to (SVIN +0.3) V; (5)Voltage Set, VVSET1, VVSET2: -0.6 to (SVIN +0.3) V; (6)Percentage Set Voltage, VPSET1, VPSET2: -0.6 to (SVIN +0.3) V; (7)Enable, VEN: -0.6 to (SVIN +0.3) V; (8)POR Voltage, VPOR: -0.6 to (SVIN +0.3) V; (9)SDI Voltage, VSDI: -0.6 to (SVIN +0.3) V; (10)Operating Temperature Range, TOP: -40 to 85℃; (11)Maximum Junction Temperature, TJMAX: 125℃; (12)Storage Temperature Range, TSTOR: -65 to 150℃; (13)ESD Rating: 2kV.
Features
88PG8227 features: (1)Tiny 3 × 4 mm QFN-20 package; (2)Dual switching regulators; (3)1MHz switching frequency; (4)Low quiescent current of 2.1 mA (typ.); (5)Stable with low-ESR ceramic output capacitors ; (6)No external compensation required; (7)Up to 95% efficiency; (8)Input voltage range: 2.75V to 5.5V; (9)Programmable output voltage range: 0.72V to 3.63V; (10)Serial / Logic Programmability; (11)Any VoltageTM Technology provides 64 output voltage selections to provide up most flexibility; (12)Built-in undervoltage lockout; (13)Over voltage protection; (14)Thermal shutdown protection; (15)Output short circuit protection; (16)Output voltage margining capability; (17)Lead-free packages.

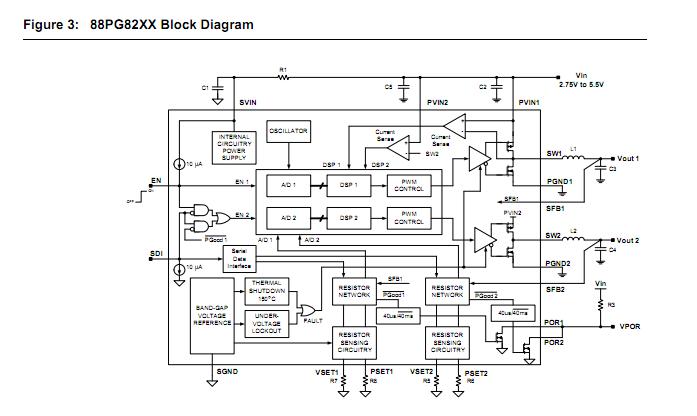

Diagrams
