Product Summary

The HCPL-7800A-000E is a high CMR isolation amplifier. The device provides a unique combination of features ideally suited for motor control circuit designers. The applications of the HCPL-7800A-000E include Motor Phase and Rail Current Sensing, Inverter Current Sensing, Switched Mode Power Supply Signal Isolation, General Purpose Current Sensing and Monitoring and General Purpose Analog Signal Isolation.

Parametrics

HCPL-7800A-000E absolute maximum ratings: (1)Storage Temperature:-55℃ to 125℃; (2)Ambient Operating Temperature:-40℃ to 100℃; (3)Supply Voltages:0V to 5.5V; (4)Steady-State Input Voltage:-2.0V to VDD1+0.5V; (5)Two Second Transient Input Voltage:-6.0; (6)Output Voltages:-0.5V to VDD2+0.5V; (7)Lead Solder Temperature:260℃(1.6 mm below seating plane, 10 sec.).

Features

HCPL-7800A-000E features: (1)15 kV/μs Common-Mode Rejection at VCM = 1000V; (2)Compact, Auto-Insertable Standard 8-pin DIP Package; (3)4.6 μV/℃ Offset Drift vs. Temperature; (4)0.9 mV Input Offset Voltage; (5)85 kHz Bandwidth; (6)0.1% Nonlinearity; (7)Worldwide Safety Approval: UL 1577 (3750 V rms/1 min), VDE 0884 and CSA; (8)Advanced Sigma-Delta A/D Converter Technology; (9)Fully Differential Circuit Topology; (10)1 μm CMOS IC Technology.

Diagrams

HCPL-7800A-000E circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

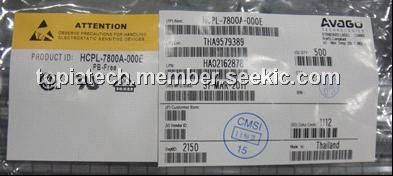

HCPL-7800A-000E
HCPL-7800A-000E

Avago Technologies

Special Purpose Amplifiers 4.5 - 5.5 SV 8 dB

Data Sheet

0-1: $7.60
1-25: $6.76
25-100: $6.08
100-250: $5.74
