Product Summary

The LC3517BL-15 is a silicon-gate CMOS, static RAM IC configured as 2048 words×8bits. The LC3517BL-15 incorporates an output enable for high-speed memory access, and TTL-compatible, tristate outputs for direct interfacing with a bus.

Parametrics

LC3517BL-15 absolute maximum ratings: (1)supply votlage, VCC max: 7.0V; (2)input voltage range, Vin: -0.5 to VCC+0.5V; (3)input/output voltage range, VIO: -0.5 to VCC+0.5V; (4)operating temperature range, Top: -30 to 85℃; (5)storage temperature range, Tstg: -55 to 125℃.

Features

LC3517BL-15 features: (1)150ns maximum address access times; (2)0.2μA at 25deg C and 1.0μA at 60 deg C; (3)9mA maximum supply current at f=1MHz; (4)data retention for VCC=2.0 to 5.5V; (5)asynchronous operation; (6)TTL compatible, tristate input/outputs; (7)single 5V supply; (8)24 pin DIP, 24 pin MFP and 24 pin SDIP.

Diagrams

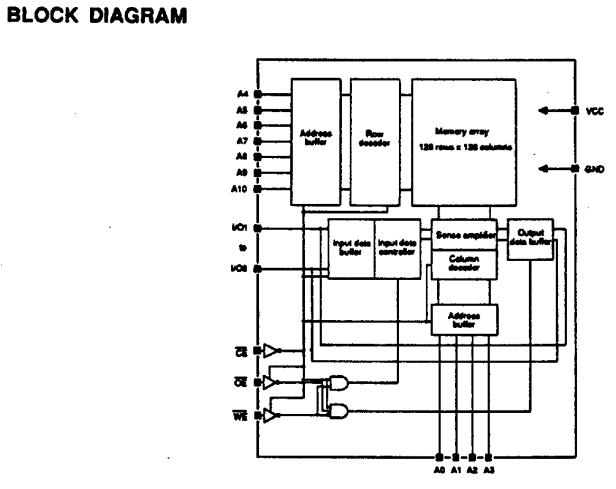

LC3517BL-15 block diagram
