Product Summary

The NLV32T-1R0J-PF is a SMD Inductor(Coil) for Signal Line(Wound). The applications of the NLV32T-1R0J-PF include Audio-visual equipment including TVs, VCRs and digital cameras, Electronic equipment used in communication infrastructures including xDSL and mobile base stations, Electronic equipment used in onboard automobile equipment including car audio and ECU systems and Other electronic equipment including HDDs and ODDs.

Parametrics

NLV32T-1R0J-PF absolute maximum ratings: (1)Operating temperature range:–40 to +105℃; (2)Storage temperature range: –40 to +105℃.

Features

NLV32T-1R0J-PF features: (1)This is a renewed version of NL322522; (2)The product has good heat durability that withstands lead-free compatible reflow soldering conditions; (3)Lead-free material is used for the plating on the terminal; (4)The electrical characteristics, reliability, shape and pad shape are the same as the previous NL series; (5)The product uses metal terminals, which realize excellent connection reliability; (6)Highly heat resistant thermoplastic resin is used to form the exterior package; (7)From 0.01μH to 470μH, all of the products in the E-12 series are J(±5%) tolerance products; (8)This product is in compliance with the RoHS Directive. Other products with specifications that do not include exemption regulations are also available.

Diagrams

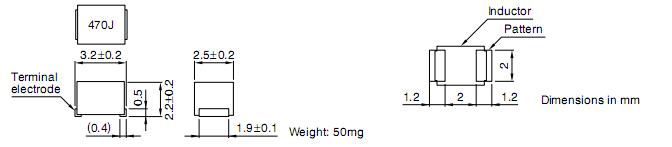

NLV32T-1R0J-PF dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

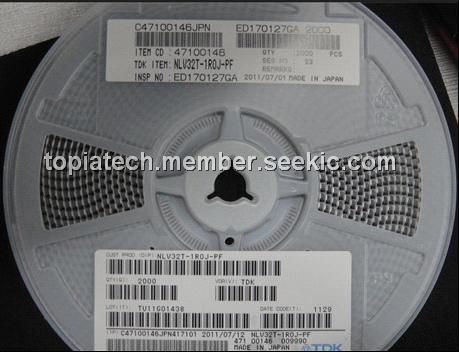

NLV32T-1R0J-PF
NLV32T-1R0J-PF

TDK

Common Mode Inductors (Chokes) 1uH 5%

Data Sheet

0-1: $0.17
1-100: $0.10
100-500: $0.09
500-1000: $0.07
1000-2000: $0.05
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
NLV32T-010J-PF
NLV32T-010J-PF

TDK

Common Mode Inductors (Chokes) 0.01uH 5%

Data Sheet

0-1: $0.19
1-100: $0.10
100-500: $0.09
500-1000: $0.08
1000-2000: $0.06
NLV32T-012J-PF
NLV32T-012J-PF

TDK

Common Mode Inductors (Chokes) 12uH

Data Sheet

0-1: $0.10
1-50: $0.08
50-100: $0.07
100-500: $0.06
NLV32T-015J-PF
NLV32T-015J-PF

TDK

Common Mode Inductors (Chokes) 0.015uH 5%

Data Sheet

0-1: $0.19
1-100: $0.10
100-500: $0.09
500-1000: $0.08
1000-2000: $0.06
NLV32T-018J-PF
NLV32T-018J-PF

TDK

Common Mode Inductors (Chokes) 18nH 5%

Data Sheet

0-1: $0.19
1-25: $0.14
25-100: $0.11
100-500: $0.09
NLV32T-022J-PF
NLV32T-022J-PF

TDK

Common Mode Inductors (Chokes) 0.022uH 5%

Data Sheet

0-1: $0.17
1-100: $0.10
100-500: $0.09
500-1000: $0.07
1000-2000: $0.05
NLV32T-027J-PF
NLV32T-027J-PF

TDK

Common Mode Inductors (Chokes) 27 NH 5%

Data Sheet

0-1: $0.19
1-10: $0.16
10-50: $0.13
50-100: $0.11
