Product Summary
The SCB941600 is a Double Solid State Relay.
Parametrics
SCB941600 absoltue maximum raitngs: (1)Control voltage, Uc: 8 to 30 V; (2)Control current (@ Uc nom ), Ic: 5 mA; (3)Release voltage, Uc off :1 V; (4)Input internal resistor, Rc: 1000Ω; (5)Reverse voltage, Urv: 30 V.
Features
SCB941600 features: (1)12-280VAC -12A ×2 Zero-Cross AC Output; (2)Two Control for 2 leg; (3)Power and Control connections by screw therminal; (4)Protection IP00 optional (1K470 000); (5)Sortie AC synchrone: 12-280Vac-12A × 2; (6)Deux Commande pour 2 voies; (7)Connexion de Puissance et de Commande par vis; (8)Possibilité de protection IP00 en option:Capot 1K470 000.

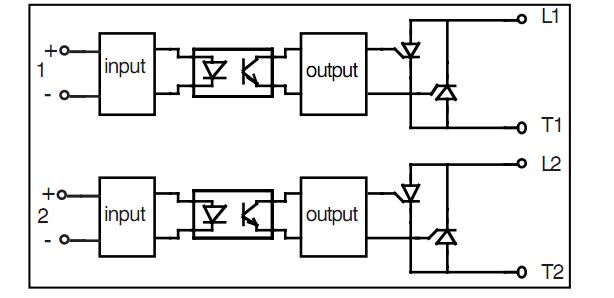

Diagrams
