Product Summary

The BD7956FS-E2 is a kind of 7ch Power Driver for CD-ROM,DVD-ROM applications.

Parametrics

BD7956FS-E2 absolute maximum ratings: (1)POWER MOS power supply voltage, SPVM1.2, SLRNF1,2: 15V; (2)Preblock/BTL powerblock power supply voltage, Vcc, SPVM_S, SLVDD, AVM: 15V; (3)PWM control block power supply voltage, DVcc: 7V; (4)Power dissipation, Pd: 2.6W; (5)Operating temperature range, Topr: -20 to 75℃; (6)Storage temperature, Tstg: -55 to 150℃; (7)Joint part temperature, Tjmax: 150℃.

Features

BD7956FS-E2 features: (1)Structure: Silicon Monolithic Integrated Circuit; (2)Product series: 7ch Power Driver for CD-ROM,DVD-ROM; (3)Function: The spindle driver and the SLED driver can highly effective drive with PWM drive system; The actuator driver and the loading driver are liner BTL drive system and are achieving a low noise power.

Diagrams

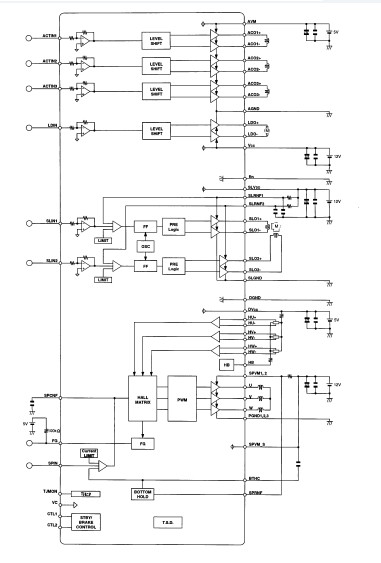

BD7956FS-E2 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

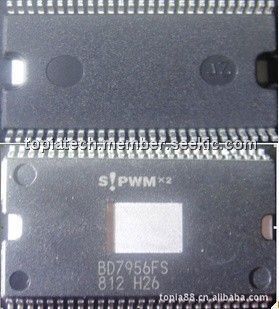

BD7956FS-E2
BD7956FS-E2

ROHM Semiconductor

Motor / Motion / Ignition Controllers & Drivers SYSTEM MOTOR DRIVER

Data Sheet
