Product Summary

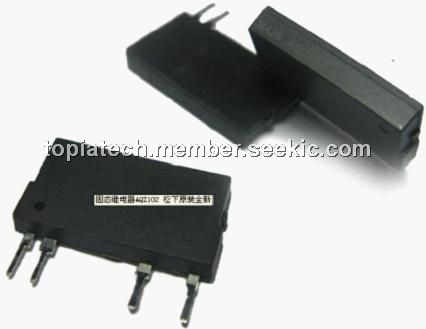

The AQZ102 is a power photoMOS relay with internal varistor. The applications of the device include Traffic signals, Measuring instruments and Industrial machines.

Parametrics

AQZ102 absolute maximum ratings: (1)LED forward current, IF: 50mA; (2)LED reverse voltage, VR: 3V; (3)Peak forward current, IFP: 1A; (4)Power dissipation, Pin: 75mW; (5)Power dissipation, Pout: 1.6W; (6)Total power dissipation, PT: 1.6W; (7)I/O isolation voltage, Viso: 2,500V AC; (8)Temperature limits; (9)Operating Topr –40℃ to +85℃; (10)Temperature limits Storage Tstg –40℃ to +100℃.

Features

AQZ102 features: (1)Power PhotoMOS relay with internal varistor; (2)High capacity PhotoMOS relay; (3)Supports both AC and DC; (4)Can be placed on-board the 4-unit relay (power photoMOS relay type); (5)Ideal for inductive loads; (6)High sensitivity, low ON resistance; (7)Compact slim-type 4-pin SIL; (8)Sockets also available; (9)Promoting the CE making.

Diagrams

AQZ102 circuit diagram
