Product Summary

The LGGW6681MELC45 is a kind of aluminum electrolytic capacitor with snap-in terminal type and 105℃ ultra-smaller-sized.

Parametrics

LGGW6681MELC45 absolute maximum ratings: (1)Category Temperature Range: -25 to +105℃; (2)Rated Voltage: 420V; (3)Rated Capacitance: 680μF; (4)Capacitance Tolerance: ±20% at 120Hz, 20℃; (5)Leakage Current: 1.60 mA.

Features

LGGW6681MELC45 features: (1)One rank smaller case sized than GN series; (2)Suited for equipment down sizing; (3)Compliant to the RoHS directive (2002/95/EC).

Diagrams

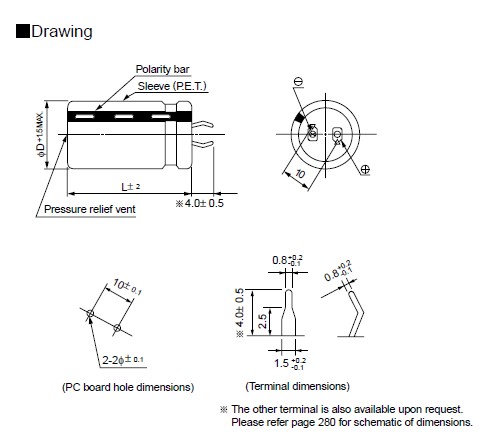

LGGW6681MELC45 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LGGW6681MELC45
LGGW6681MELC45

Nichicon

Aluminum Electrolytic Capacitors - Snap In 420volts 680uF 105c 35x45x10L/S

Data Sheet

0-45: $18.14
45-250: $12.08
250-500: $10.98
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LGGW6121MELZ30
LGGW6121MELZ30

Nichicon

Aluminum Electrolytic Capacitors - Snap In 420volts 120uF 105c 22x30x10L/S

Data Sheet

0-1: $5.12
1-250: $3.41
250-500: $3.10
500-1250: $2.81
LGGW6151MELA25
LGGW6151MELA25

Nichicon

Aluminum Electrolytic Capacitors - Snap In 420volts 150uF 105c 25x25x10L/S

Data Sheet

0-56: $6.02
56-250: $4.01
250-500: $3.64
500-1250: $3.31
LGGW6151MELZ35
LGGW6151MELZ35

Nichicon

Aluminum Electrolytic Capacitors - Snap In 420volts 150uF 105c 22x35x10L/S

Data Sheet

0-56: $5.68
56-250: $3.79
250-500: $3.44
500-1250: $3.13
LGGW6181MELZ35
LGGW6181MELZ35

Nichicon

Aluminum Electrolytic Capacitors - Snap In 420volts 180uF 105c 22x35x10L/S

Data Sheet

0-56: $6.23
56-250: $4.15
250-500: $3.78
500-1250: $3.44
LGGW6271MELA40
LGGW6271MELA40

Nichicon

Aluminum Electrolytic Capacitors - Snap In 420volts 270uF 105c 25x40x10L/S

Data Sheet

0-56: $8.42
56-250: $5.62
250-500: $5.11
500-1250: $4.63
LGGW6331MELA45
LGGW6331MELA45

Nichicon

Aluminum Electrolytic Capacitors - Snap In 420volts 330uF 105c 25x45x10L/S

Data Sheet

0-56: $9.65
56-250: $6.42
250-500: $5.84
500-1250: $5.31
