Product Summary

The MT9D131C12STC is a 1/3 inch, 2-megapixel CMOS image sensor with an integrated, advanced camera system. The system features a microcontroller and a sophisticated image flow processor (IFP) with a real-time JPEG encoder. The excellent low-light performance of MT9D131C12STC is one of the hallmarks of DigitalClarity technology-Aptina’s breakthrough low-noise imaging technology that achieves CCD image quality (based on signal-to-noise ratio and low-light sensitivity) while maintaining the inherent size, cost, power consumption and integration advantages of CMOS. The applications of the MT9D131C12STC include security surveillance cameras, ePTZ cameras, wireless cameras, consumer video products, high-resolution security cameras.

Parametrics

MT9D131C12STC absolute maximum ratings: (1)Maximum data rate/master clock: 80 MB/s 6 MHz to 80 MHz; (2)Supply voltage, Analog: 2.5 to 3.1V; Digital: 1.7 to 1.95V; I/O: 1.7 to 3.1V; PLL: 2.5 to 3.1V; (3)Responsivity: 1.0V/lux-sec (550nm); (4)Operating temperature: -30℃ to +70℃.

Features

MT9D131C12STC features: (1)DigitalClarity CMOS imaging technology; (2)Superior low-light performance; (3)Ultra-low-power, cost-effective; (4)Internal master clock generated by on-chip phaselocked loop oscillator ; (5)Electronic rolling shutter (ERS), progressive scan; (6)Integrated image flow processor (IFP) for single-die camera module; (7)Automatic image correction and enhancement, including lens shading correction; (8)Arbitrary image decimation with anti-aliasing; (9)Integrated real-time JPEG encoder; (10)Integrated microcontroller for flexibility; (11)Two-wire serial interface providing access to registers and microcontroller memory; (12)Selectable output data format: ITU-R BT.601 (YCbCr);565RGB; 555RGB; 444RGB; JPEG 4:2:2; JPEG 4:2:0; Raw 10-bit; (13)Output FIFO for data rate equalization; (14)Programmable I/O slew rate.

Diagrams

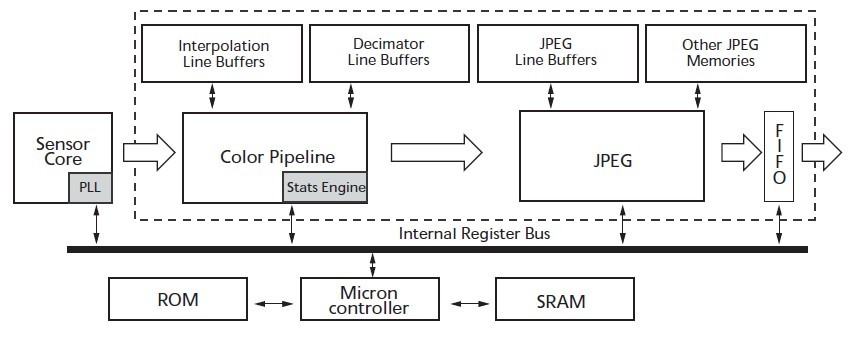

MT9D131C12STC block dragram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MT9D131C12STC
MT9D131C12STC


SENSOR IMAGE 2MP CMOS 48-CLCC

Data Sheet

0-96: $10.98
MT9D131C12STCD ES
MT9D131C12STCD ES


KIT DEV FOR MT9D131

Data Sheet

0-1: $716.04
MT9D131C12STCH ES
MT9D131C12STCH ES

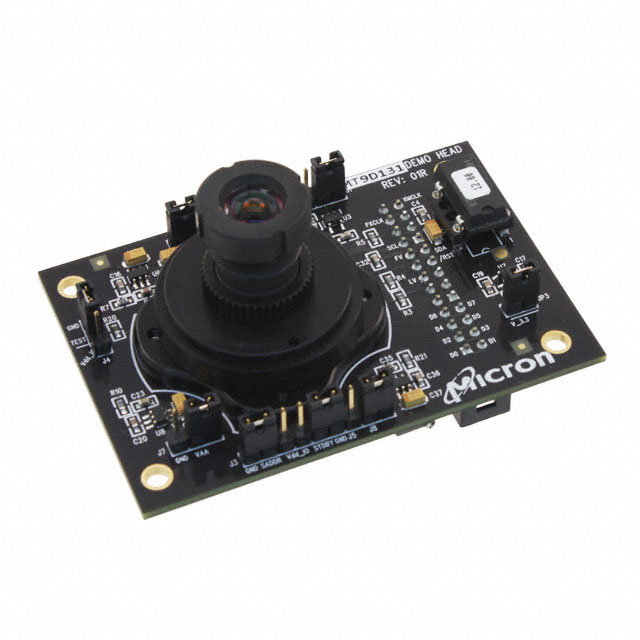

KIT HEAD BOARD FOR MT9D131

Data Sheet

0-1: $206.55
