Product Summary

The MT9V136C12STC s a SOC Image Sensor. The applications of the device include Analog security cameras, Network cameras, CCTV cameras, SOHO monitoring and Consumer video applications.

Parametrics

MT9V136C12STC absolute maximum ratings: (1)Active Array: 680(H)×512(V); (2)Imaging Area: 3.54mm(H)×2.69mm(V); (3)Frame Rate: 30 fps NTSC/25 fps PAL; 60 fps digital at full resolution; (4)Data Rate: 27 Mb/s; (5)Master Clock: 27 MHz; (6)Data Format: NTSC/PAL/digital progressive scan; (7)Operating temperature: –30 to +85℃; (8)Storage temperature: –40 to +125℃.

Features

MT9V136C12STC features: (1)Embedded NTSC/PAL encoder; (2)Best-in-class, low-light performance; (3)System on a chip (SOC)-completely integrated camera system; (4)Ultralow power, low-cost progressive scan; (5)On-chip image flow processor performs processing such as color recovery/correction, sharpening, gamma, lens shading correction, on-the-fly defect correction, auto white balance, and auto exposure; (6)Programmable functions: gain, horizontal and vertical blanking, auto black level offset correction, frame size/rate, exposure, left-right and top-bottom image reversal, window size, and panning; (7)Progressive scan or interlace, parallel data formats; (8)Two-wire serial programming interface; (9)SPI interface.

Diagrams

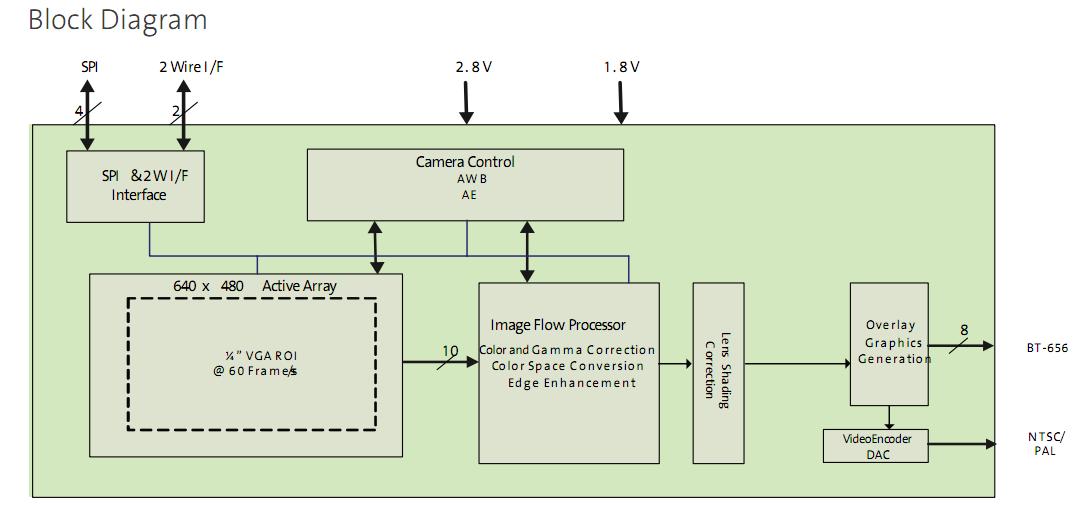

MT9V136C12STC block diagram
