Product Summary

The ACS758LCB-050B-PFF-T is a current sensor IC. It provides economical and precise solutions for AC or DC current sensing. Typical applications include motor control, load detection and management, power supply and DC-to-DC converter control, inverter control, and overcurrent fault detection.

Parametrics

ACS758LCB-050B-PFF-T absolute maximum ratings: (1)Forward Supply Voltage, VCC: 8V; (2)Reverse Supply Voltage ,VRCC: –0.5 V; (3)Working Voltage for Reinforced Isolation, VWORKING: 353 VAC; (4)Forward Output Voltage, VIOUT: 28 V; (5)Reverse Output Voltage VRIOUT: –0.5 V; (6)Output Source Current, IOUT(Source): 3 mA; (7)Output Sink Current, IOUT(Sink): 1 mA; (8)Nominal Operating Ambient Temperature, TOP: –40 to 85℃; (9)Maximum Junction, TJ(max): 165℃; (10)Storage Temperature, Tstg: –65 to 165℃.

Features

ACS758LCB-050B-PFF-T features: (1)Industry-leading noise performance through proprietary amplifier and filter design techniques; (2)Integrated shield greatly reduces capacitive coupling from current conductor to die due to high dV/dt signals, and prevents offset drift in high-side, high voltage applications; (3)Total output error improvement through gain and offset trim over temperature; (4)Small package size, with easy mounting capability; (5)Monolithic Hall IC for high reliability; (6)Ultra-low power loss: 100 μΩ internal conductor resistance; (7)Galvanic isolation allows use in economical, high-side current sensing in high voltage systems; (8)3.0 to 5.5 V, single supply operation; (9)120 kHz typical bandwidth; (10)3 μs output rise time in response to step input current; (11)Output voltage proportional to AC or DC currents; (12)Factory-trimmed for accuracy; (13)Extremely stable output offset voltage; (14)Nearly zero magnetic hysteresis.

Diagrams

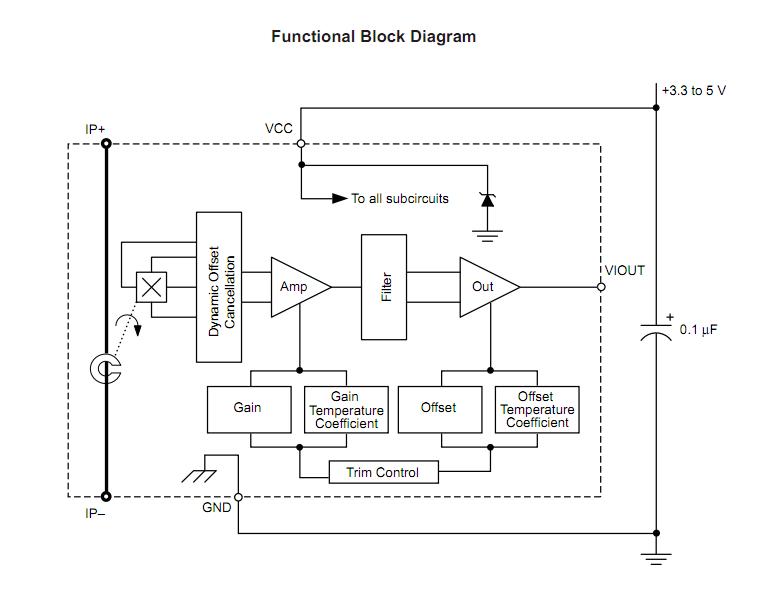

ACS758LCB-050B-PFF-T functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ACS758LCB-050B-PFF-T
ACS758LCB-050B-PFF-T


SENSOR CURRENT 50A 5V BI 5-CB

Data Sheet

0-1: $4.20
1-10: $3.78
10-50: $3.44
50-100: $3.11
100-250: $2.86
250-500: $2.60
500-1000: $2.27
1000-2500: $2.18
2500-5000: $2.10
