Product Summary

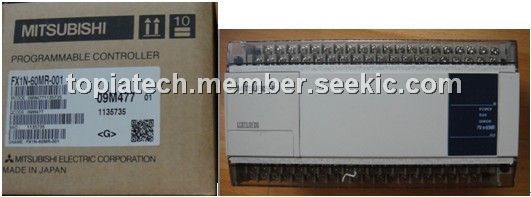

The FX1N-60MR-001 is an introductory micro PLC meant for simple yet performance-critical applications. With internal positioning capabilities, comprehensive expansion options, and a battery-less maintenance-free design, the FX1N-60MR-001 provides a competitive answer for controlling systems with up to 128 I/O.

Parametrics

FX1N-60MR-001 absolute maximum ratings: (1)Input voltage: 24V DC ±10%; (2)Input current: 24V DC, 7mA; (3)Response time: 10ms; (4)Variable response time: X000-X007 0-15ms.

Features

FX1N-60MR-001 features: (1)Expandable terminal-type I/O; (2)Add-on analog control and communication functionality; (3)Integrated serial interface for communication with Personal computers and HMI; (4)Input and output indicator LEDs; (5)Detachable terminal blocks for all units; (6)All DC powered models support 12V to 24V power supplies; (7)Integrated real-time clock; (8)System flexibility with expansion boards, special adapters, extension I/O, and special function blocks.

Diagrams

FX1N-60MR-001 circuit diagram
