Product Summary

The NC2ED-DC24V is a kind of relay designed for power control up to 5 A or Tape recorders, temperature controls, video tape recorders Telecommunications equipment, measuring controls, copiers Date processing equipment, computer peripherals Automatic vendors, copiers, automatic storage controls, N.C. machines.

Parametrics

NC2ED-DC24V absolute maximum ratings: (1)Max. operating speed: 180 cpm; (2)Initial insulation resistance: Min. 100 MΩ at 500 V DC; (3)Initial breakdown voltage: Between open contacts, contact sets: 1,000 Vrms; Between contacts and coil: 2,000 Vrms; (4)Operate time (at nominal voltage): Approx. 6 ms; (5)Release time (at nominal voltage): Approx. 3 ms; (6)Operate time (latching) (at nominal voltage): Approx. 6 ms; (7)Reset time (latching) (at nominal voltage): Approx. 6 ms; (8)Temperature rise (at nominal voltage) Max. 65℃.

Features

NC2ED-DC24V features: (1)Space saver: Flat series and vertical series; (2)High contact reliability due to bifurcated contacts: 2C: 5 A 250 V AC, 4C: 5 A 125 V AC, 4 A 250 V AC; (3)Latching types available; (4)Low operating power: 2C: 200 mW, 4C: 400 mW (Single side stable); (5)Soldering flux inflow prevented by terminal location; (6)Amber sealed types available; (7)High breakdown voltage for transient protection; (8)1,000 Vrms between open contacts, contact sets.

Diagrams

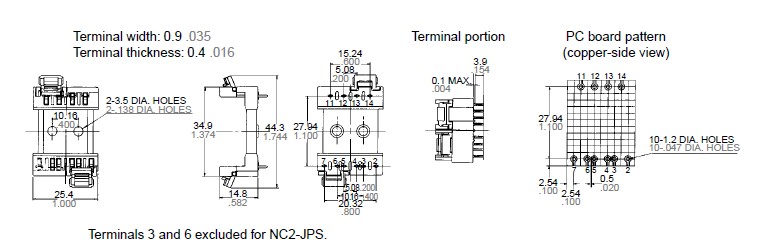

NC2ED-DC24V circuit diagram
